FILT&SWAP Inline filter

Ref. AT50670
Active charcoal and 0.2µm microfiltration
See variants See variants
FILT&SWAP Inline filter

Presentation

DESCRIPTION

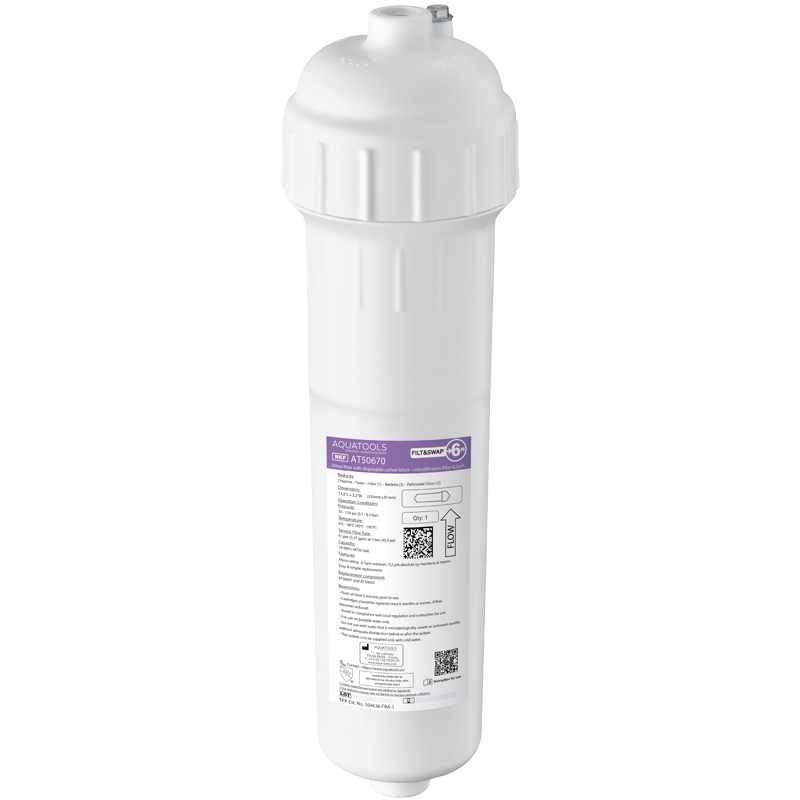

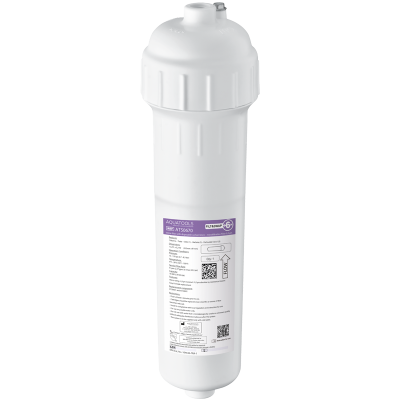

FILT&SWAP Inline filter

Ref. AT50670
FILT&SWAP duo inline anti-Legionella filter: active charcoal and 0.2µm microfiltration.
Active charcoal: reduces taste, smells and chlorine in water.
Microfiltration: retains all bacteria and other particles larger than 0.2 µm.
Filter cartridge can be replaced without changing the filter body.
Membrane surface area: 0.5m².
Capacity: 18,000L.
Maximum lifespan: 6 months.
Filtration flow rate: 9 L/min (with integrated flow restrictor), 14 L/min (without flow restrictor) at 3 bar.
Materials: Polypropylene body. ABS plastic parts of the filter cartridge. Polyethylene microfiltration cartridge.
Temperature: 4 - 38°C.
Operating pressure: 0.5 to 10 bar.
Connection: G3/8" tube or thread.
Compatible with and resistant to chemical shocks (active chlorine levels up to 100 ppm for 1 hour (cumulative total) and thermal shocks (70°C for 30 minutes).

ADVANTAGES

Anti-Legionella

6 months

Characteristics

TECHNICAL CHARACTERISTICS

FILT&SWAP Inline filter

Ref. AT50670

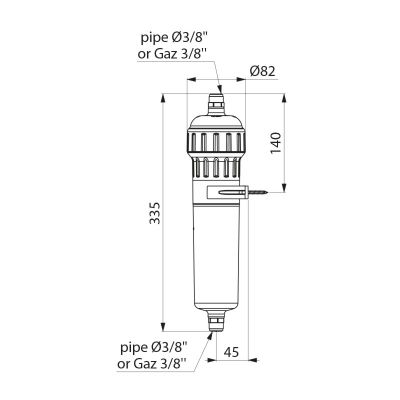

Supply Tube or G3/8"
Length 335mm
Flow rate 9 lpm (with integrated flow restrictor), 14 lpm (without flow restrictor) at 3 bar
Diameter 82mm
Lifespan 6 months
Certificates WRAS

Downloads

DOWNLOADS

FILT&SWAP Inline filter

Ref. AT50670

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

AT50601 Inlien filter - Replacement cartridge 0.2µm
AT50602 Inline filter - Active charcoal replacement cartridge

VARIANTS

AT50601 Inlien filter - Replacement cartridge 0.2µm
AT50602 Inline filter - Active charcoal replacement cartridge
