Hygienic waste without water level

Ref. AT621
Hygienic waste without water level, with membrane
Contact us
See variants See variants
Hygienic waste without water level

Presentation

DESCRIPTION

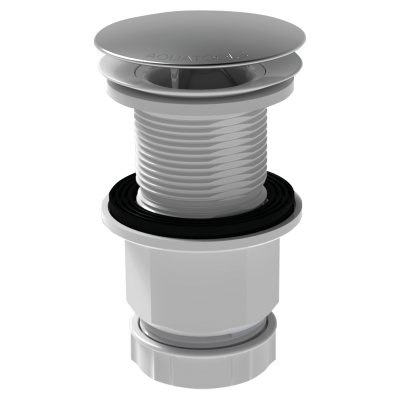

Hygienic waste without water level

Ref. AT621
Water-free waste M1 1/4".
Waste with a membrane to prevent bad smells.
No water level: cap and cup with a membrane which can be removed from above.
Membrane can be cleaned and replaced.
Cap made from stainless steel. Cup and body made from polypropylene. Membrane made from silicone.
Evacuation flow rate complies with European standard EN 274: 36 lpm.
Waste can be cut to size.
Not suitable for washbasins with an overflow.

ADVANTAGES

Maximum hygiene: no water level

Requires minimal space underneath the basin

Maintenance aisée - Installation aisée

Easy to maintain: cap can be removed easily

Characteristics

TECHNICAL CHARACTERISTICS

Hygienic waste without water level

Ref. AT621
Supply 11/4"
Flow rate Complies with European standard EN 274: 36 l/min

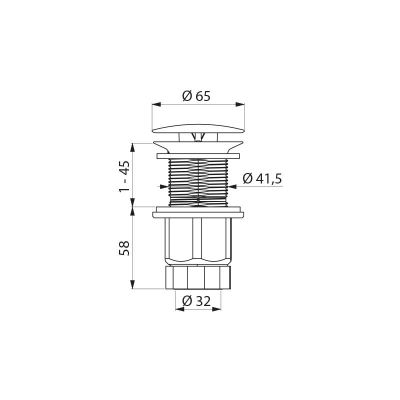

Diameter 65mm
Finish Cap made from stainless steel. Cup and body made from polypropylene. Membrane made from silicone.
Hygienic waste without water level
Ref. AT621

Downloads

DOWNLOADS

Hygienic waste without water level

Ref. AT621

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

AT621001.2P Membrane and cup assembly - For ref. AT621

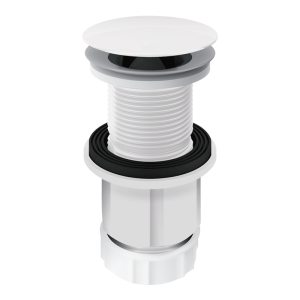

AT621W White hygienic waste with no water level
AT621001W.2P Membrane and cup assembly - For ref. AT621W

Associated products

VARIANTS

AT621001.2P Membrane and cup assembly - For ref. AT621
AT621W White hygienic waste with no water level
AT621001W.2P Membrane and cup assembly - For ref. AT621W
