DESCRIPTION

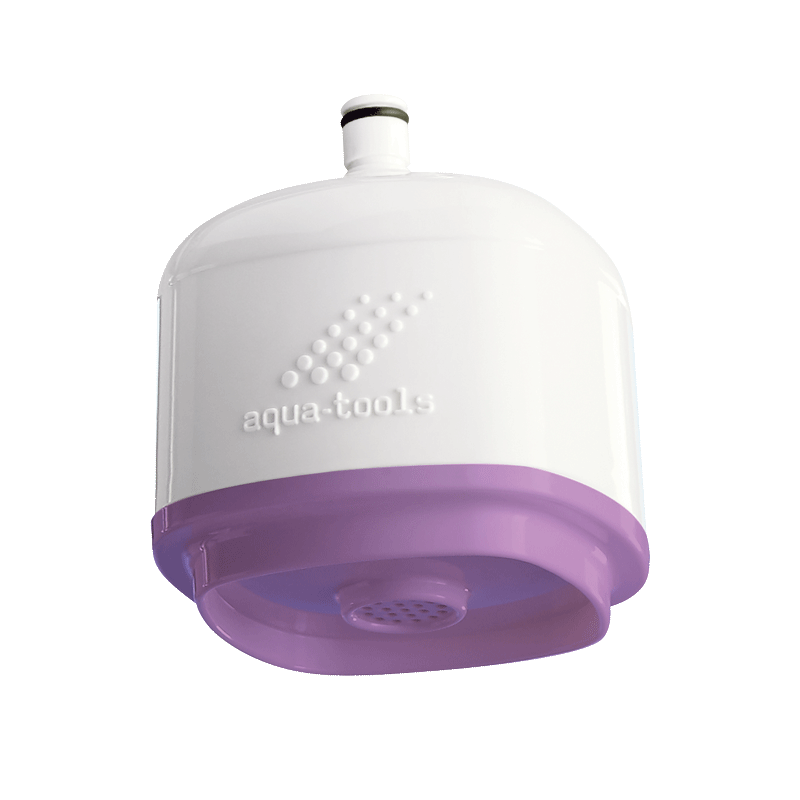

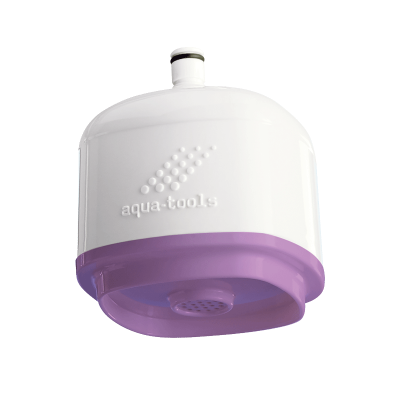

FILT’RAY 2-month tap filter
Ref. AT030721AQUATOOLS anti-Legionella and all-germ tap filter.
Device made from MBS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Filtration flow rate: 6.3 lpm at 3 bar and 2.2 lpm at 1 bar
(filter only, excludes any flow rate restriction in the tap).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 2 months from installation.
Withstands thermal shocks: 70°C for 30 minutes.
Withstands chemical shocks: active chlorine levels up to 100 ppm
for 2 hours (cumulative total).
Non-sterile filter.
CE marked Class I medical device.
Packaged in boxes of 10.
Device made from MBS.
Membrane type: tubular microfiltration.
Membrane made from polyethylene.
Pore cut-off threshold: 0.1μm nominal and 0.2μm absolute sterilising grade.
Filtration flow rate: 6.3 lpm at 3 bar and 2.2 lpm at 1 bar
(filter only, excludes any flow rate restriction in the tap).
Maximum upstream pressure at the point-of-use: 5 bar.
Maximum lifespan: 2 months from installation.
Withstands thermal shocks: 70°C for 30 minutes.
Withstands chemical shocks: active chlorine levels up to 100 ppm
for 2 hours (cumulative total).
Non-sterile filter.
CE marked Class I medical device.
Packaged in boxes of 10.
ADVANTAGES

Anti-Legionella and all-germ

Lifespan: 2 months from installation

Bubl'air Wash: longer filter life

Rapid installation with no tools required

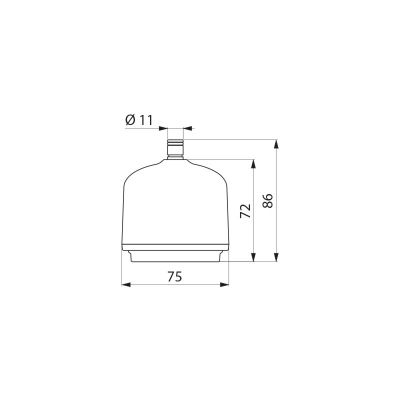

TECHNICAL CHARACTERISTICS
FILT’RAY 2-month tap filter
Ref. AT030721| Technology | Point-of-use filtration |
| Height | 72mm |
| Length | 75mm |
| Flow rate | 6.3 lpm at 3 bar, 2.2 lpm at 1 bar |
| Lifespan | 2 months |
| Certificates |
|
VARIANTS
| AT030720 | Shower flow | |
|---|---|---|
| AT030719 | Laminar flow | |
| AT030722 | Shower flow - Non-sterile |
VARIANTS
| AT030720 | Shower flow | |
|---|---|---|
| AT030719 | Laminar flow | |
| AT030722 | Shower flow - Non-sterile |
